Eaglesoft Installation Manual

Step 1

​

Run Eaglesoft and go to File and then Preferences.

​

​

​

​

​

​

​

​

​

​

​

​

​

​



​

​

​

​

​

​

​

​

​

​

​

​

​

Step 2

​

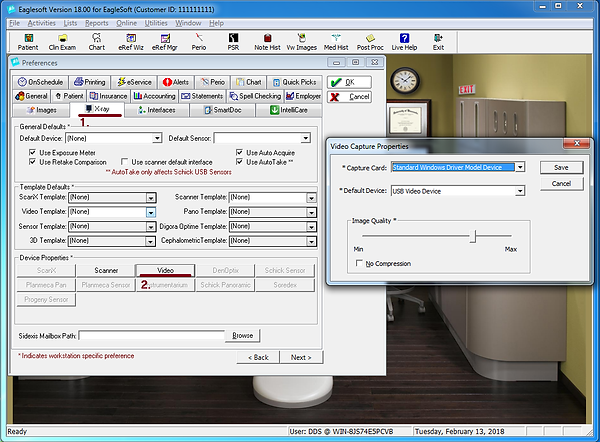

Click on the X-Ray Tab, then hit the Video button. The Video Capture Properties window will pop up. Change the Capture Card drop down menu to say Standard Windows Driver Model Device. Then change the Default Device to "USB video device". Click Save and then click the OK button on the Preferences window.

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

If you see this window, just click OK, you don’t have to restart Eaglesoft for this setting change to go into affect.

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

Step 3

​

Click on the Intraoral Camera to the right of the Red Chair, I have drawn a square box around it. This brings up the Intraoral Camera for Eaglesoft. If it asks you to select a patient, go ahead and chose a patient from the list.

​

​

​

​



















​





​

​

​

​

​

​

​

​

​

​

​

​

​

Step 4

​

Now the Video Exam window will appear, this is the window you take intraoral images. Click the Setup buttom, so the Video Capture Settings window appears. Change the Color Space/Compression setting to YUY2 or RGB24 if you have the option. Don’t use MJPG with Eaglesoft, it make the live video slow motion. Next click the Default button at the bottom to be sure your Gamma and White Balance settings are correct. Feel free to change these settings. Check mark the box to the left of "Use Video Mixing Renderer". Otherwise, you will see a black screen. This is a one time setting you should set with Eaglesoft, you don’t need to do this every time you use the camera. Click the OK button when you are finished.

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

Step 5

​

Now it is time to take some images! Use the capture button on your camera to take images if you have installed DARYOU Button driver, and every time you do, the Number will increase incrementally, letting you know that Eaglesoft has taken the image. Otherwise, press Power button on the camera to freeze image, then click "Freeze" and "Save" button to take picture. Then press Power button again to bring video to live.Close the window when you are finished taking images and the images will be in Eaglesoft.

​

​

​

​

​

​

​

​

​

​
